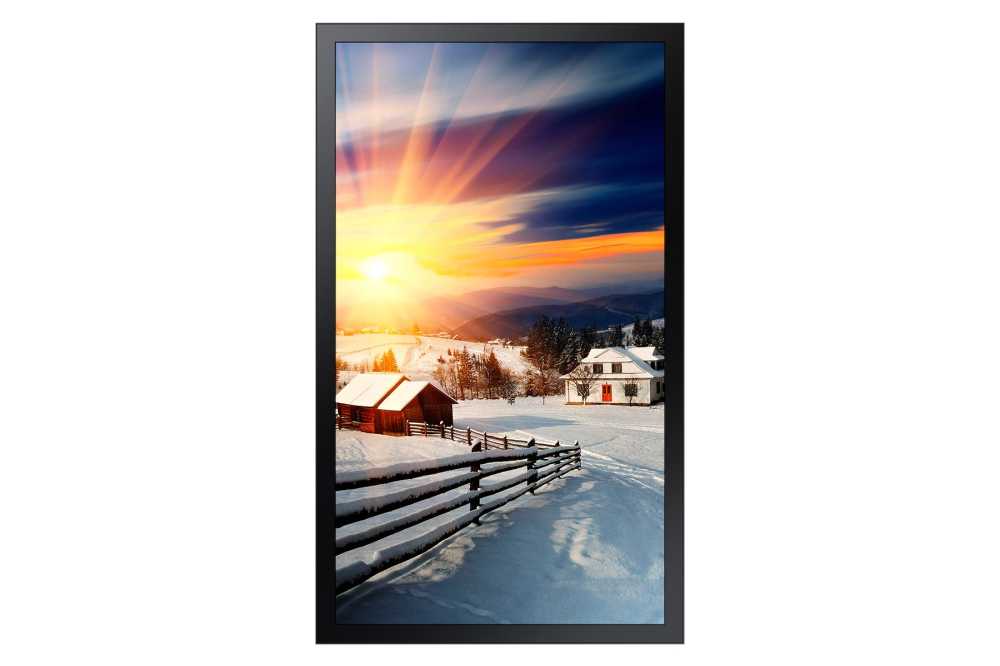

OH75F (Outdoor)

A powerful all-inclusive outdoor signage solution featuring an embedded power box

Description

  • All-in-one solution complete with an embedded power box, along with an ultra-slim depth of 85mm
  • An optimum level of endurance equivalent to IK10 and extra durability with IP56 Ingress Protection
  • A filterless self-cooling system enabling easy maintenance and reduced TCO
  • Excellent visibility under direct sunlight through 2,500-nit high brightness and anti-reflection glass
  • An advanced content management solution via SSSP 4.0 powered by TIZEN

Panel

Diagonal Size Class 75
Measured 74.5″ / 189.3cm
Type 120Hz D-LED Local Dim. BLU
Resolution  1920 x 1080 (16:9)
Pixel Pitch(mm) 0.860 x 0.860
Active Display Area(mm) 1650.24(H) x 928.26(V)
Brightness(Typ.) 2,500 cd/m2
Contrast Ratio 5,000:1
Viewing Angle(H/V) 178/178
Response Time(G-to-G) 6ms
Display Colors 8 bit – 16.7M
Color Gamut 70%

Mechanical Spec

Dimension (mm) Set 1774.8 x 1053.4 x 120 mm
Package 1946 x 1252 x 495 mm
Weight (kg) Set 142 kg
Package 188 kg
Mounting Hole 870 x 1118.4 (M8 x 8Hole)
Protection Glass Yes (5T Tempered Glass)
Stand Type N/A
Bezel Width (mm) 59.8 / 59.8 / 59.8 / 59.8 mm

Operations

Operating Temperature -30℃~ 50℃
Humidity 10~80%
