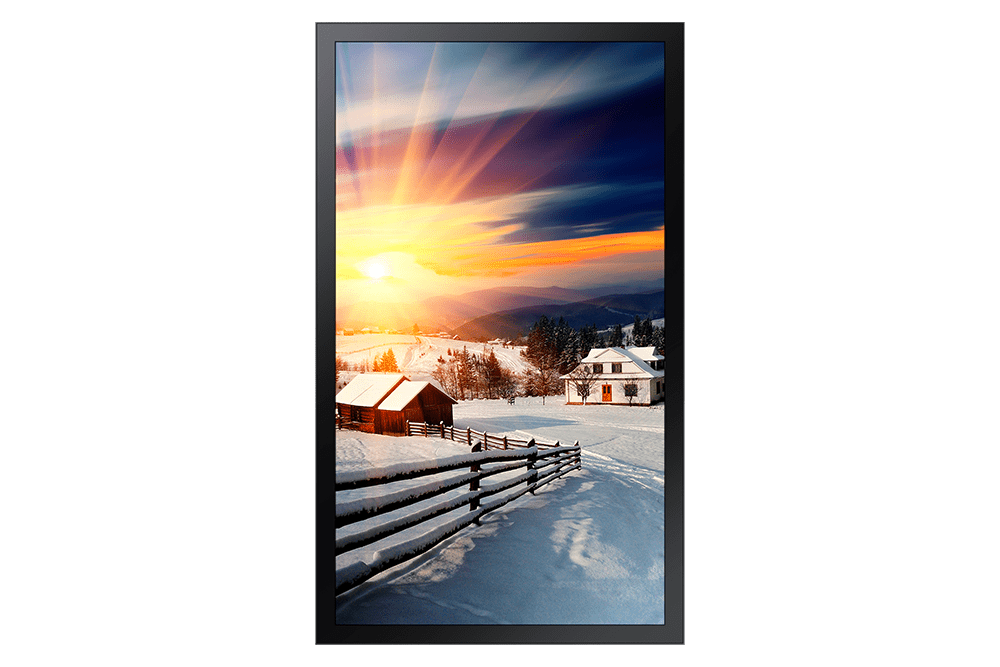

OH85N-S

Deliver bright, creative messages on robust outdoor signage.

Description

  • 85″ large-sized digital displays optimized for outdoor usage
  • Excellent visibility under direct sunlight through 3,000nit high brightness
  • Optimal durability with IK10-rated Magic Protection Glass and IP56-rated displays
  • Advanced content management via MagicINFO S6 Player powered by TIZEN

Panel

Diagonal Size 85
Type 60Hz D-LED Local Dim. BLU
Resolution 3840*2160 (4K UHD)
Pixel Pitch(mm) 0.488 x 0.488
Active Display Area(mm) 1872(H) x 1053(V)
Brightness(Typ.) 3000 nit
Contrast Ratio 3000:1
Viewing Angle(H/V) 178/178
Response Time(G-to-G) 8ms
Display Colors 8 bit – 16.7M bit
Color Gamut 72%
Operation Hour 24/7
Haze 0%

Mechanical Spec

Dimension (mm)
Set 2004 x 1185 x 120 mm
Package 2175 x 1383 x 495 mm
Weight (kg)
Set 163kg
Package 211kg
Protection Glass Yes (5T Tempered Glass)
Bezel Width (mm) 62 / 62 / 62 / 62 mm

Operations

Operating Temperature -30  ℃  ~   50   ℃ Humidity 10  %  ~   100   %   (Non-Condensing)
