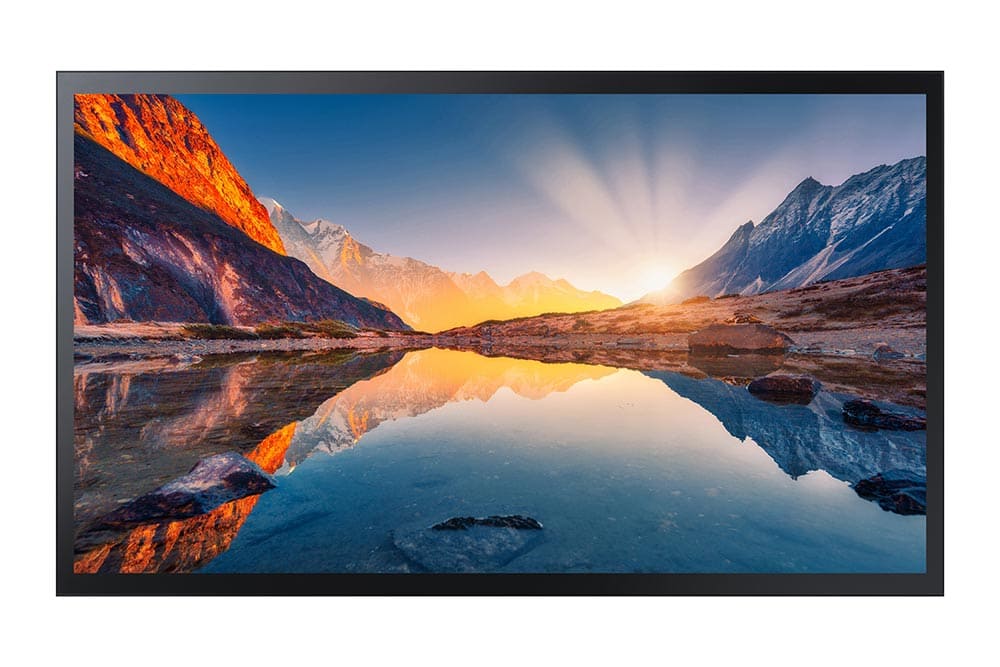

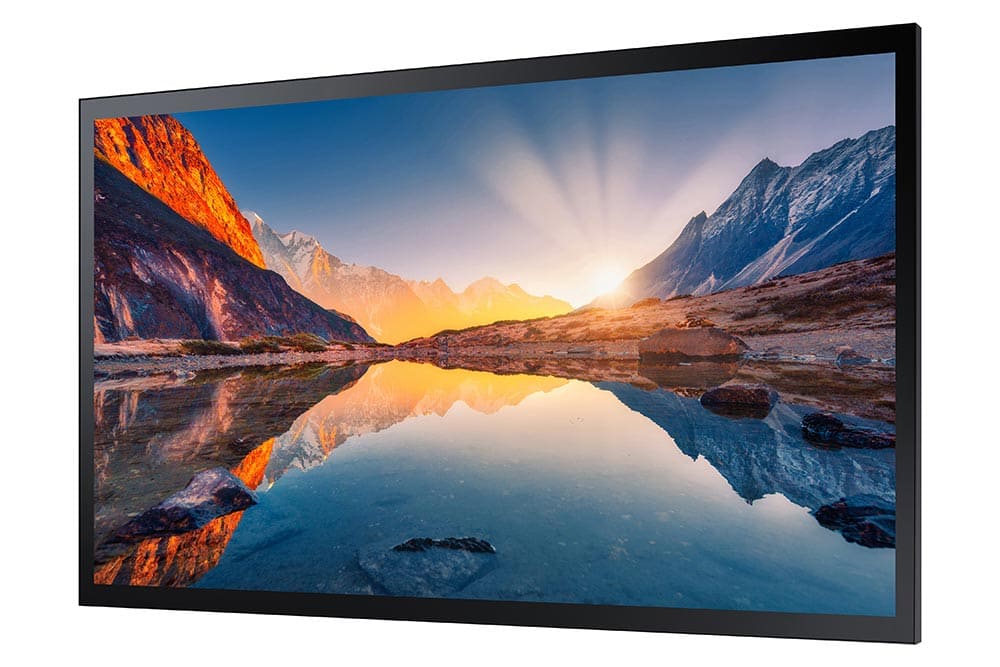

QM32R-T

Increase customer engagement with intuitive touch displays.

Description

  • Powerful embedded all-in-one touch solution based on Tizen
  • Experience real-time interaction and fast touch performance
  • Deliver clear visibility from all angles

Panel

Diagonal Size 32
Type Edge LED BLU
Resolution 1920*1080 (Full HD)
Pixel Pitch(mm) 0.3638 x0.3638
Active Display Area(mm) 698.4(H) x 392.85(V)
Brightness(Typ.) 300 (with Touch glass), 400(without Touch Glass) nit
Contrast Ratio 5,000:1 (Without Glass)
Viewing Angle(H/V) 178/178
Response Time(G-to-G) 8ms(Typ.)
Display Colors 16.7M
Color Gamut 72%
Operation Hour 16/7
Haze 2% (Without Glass)

Mechanical Spec

Dimension (mm)
Set 744.4 x 444.6 x 48.2
Package 872 x 565 x 133
Weight (kg)
Set 8.3
Package 11.1
VESA Mount (mm) 200 X 200
Stand Type Foot Stand (Optional)
Bezel Width (mm) 24.5mm(U/D), 21.5mm(L/R)

Operations

Operating Temperature 0  ℃  ~   40   ℃ Humidity 10  %  ~   80   %
