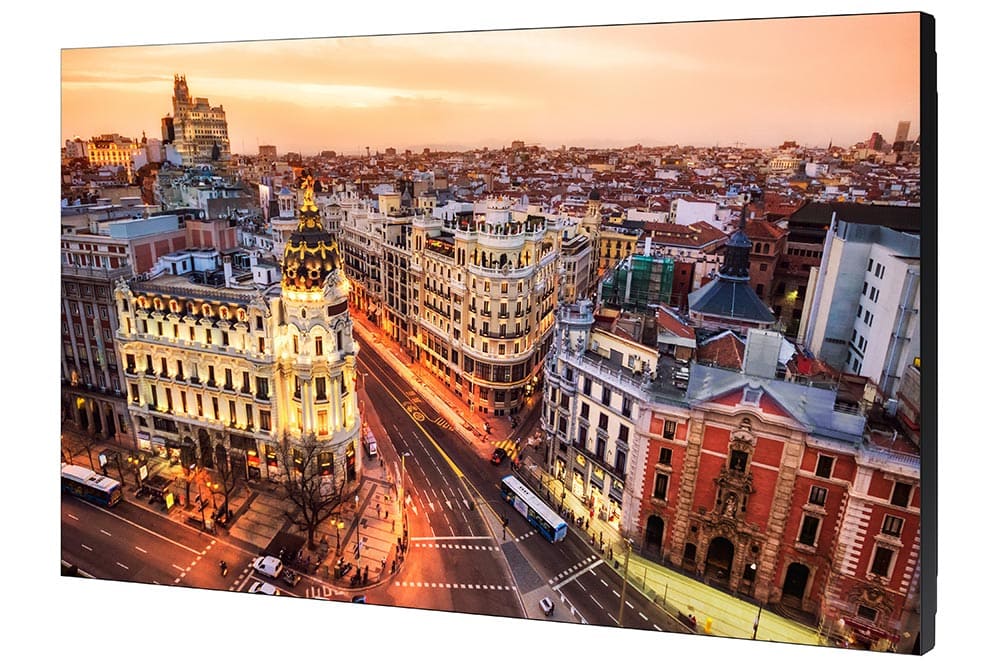

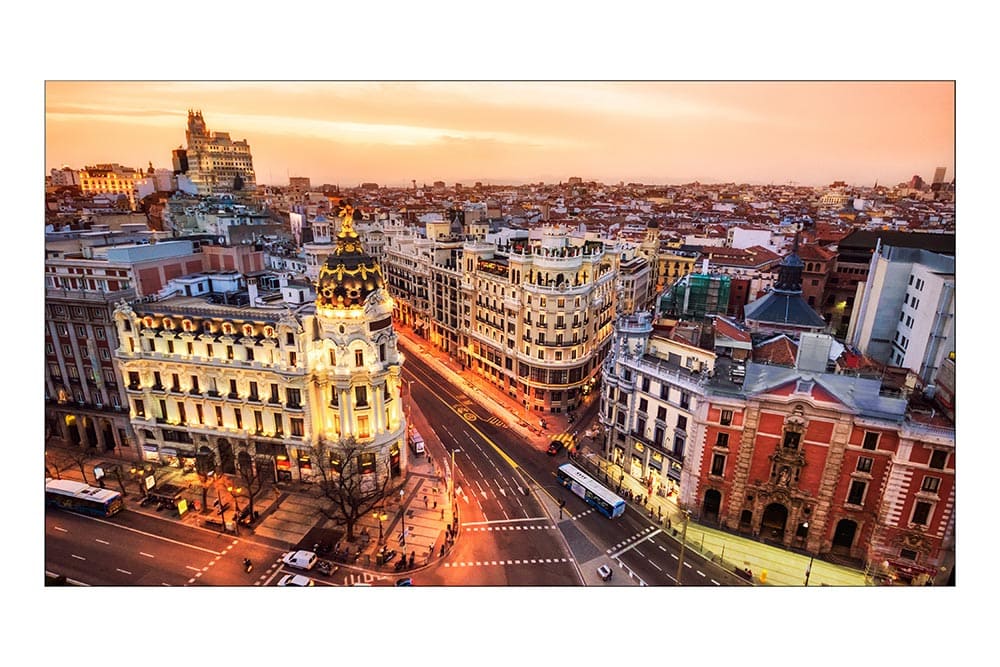

Eye-catching bright and brilliant contents delivery with extreme narrow bezel video wall displays


  • An extreme narrow 1.8mm bezel-to-bezel design creates seamless visual experience
  • 700 nit brightness and non-glare panel provide high visibility 24/7
  • Wide viewing angles enable clear image presentation for more viewers in large spaces
  • Picture enhancement technology delivers optimized visuals


Diagonal Size 55″
Type IPS
Resolution 1920*1080(Full HD)
Pixel Pitch(mm) 0.63mm(H)*0.63mm(V)
Active Display Area (mm) 1209.6*680.4mm
Brightness(Max) 700 nit
Contrast Ratio 1200:1
Viewing Angle(H/V) 178:178
Response Time(G-to-G) 8ms
Display Colors 8bit – 16.7M
Color Gamut 72%
Operation Hour 24/7
Haze 28%

Mechanical Spec

Dimension(mm) Set 1211.5 (W)X 682.3 (H)X 70(D)
Package 1398(W) X 844 (H)X 257 (D)
Weight (kg) Set 19.4
Package 27.6
VESA Mount 600 x 400
Bezel Width 0.9mm (even)


Operating Temperature 0℃~ 40℃
Humidity 10~80%
